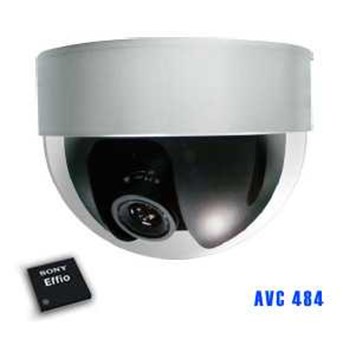

Detail AVTECH AVC 484 ( SONY EFFIO)
SPESIFICATION
Pick up Element 1/ 3" Color CCD image sensor with SONY Effio DSP
Number of Pixel 768( H) x494( V) / 752( H) x582( V)
Resolution Super High Resolution
Min. Illumination 0.05 Lux / F1.4
S/ N Ratio More than 48dB ( AGC off)
Electronic Shutter 1/ 60 ( 1/ 50) to 1/ 100, 000 sec
Lens f3.8mm ~ f9.5mm
Lens Angle 85.4° ^ 36°
IRIS Mode AES
White Balance ATW
Vandal-Proof Rating IPxx7
Video Output 1.0 Vp-p composite, 75©
Power Source ( ± 10% ) DC12V
Current Consumption ( ± 10% ) 70mA
Dimensions ( mm) * * 124.3( O) x 92( H)
Net Weight ( g) 460
